Lug Pattern Excavator Track Shoe Wear Resistance Excavator Track Shoe

Basic Information

Place of Origin:	Quanzhou,FuJian
Brand Name:	Caterpillar
Model Number:	E70B

Minimum Order Quantity:	100PCS
Price:	10-120 / Piece
Packaging Details:	Export wooden pallets
Delivery Time:	Twenty days

Get Best Price Contact Now

Detail Information

Highlight:

Lug Pattern Excavator Track Shoe

Wear Resistance Excavator Track Shoe

Product Description

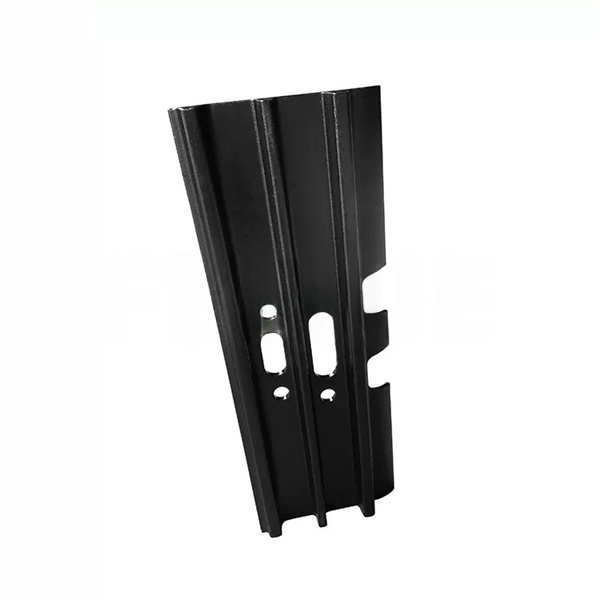

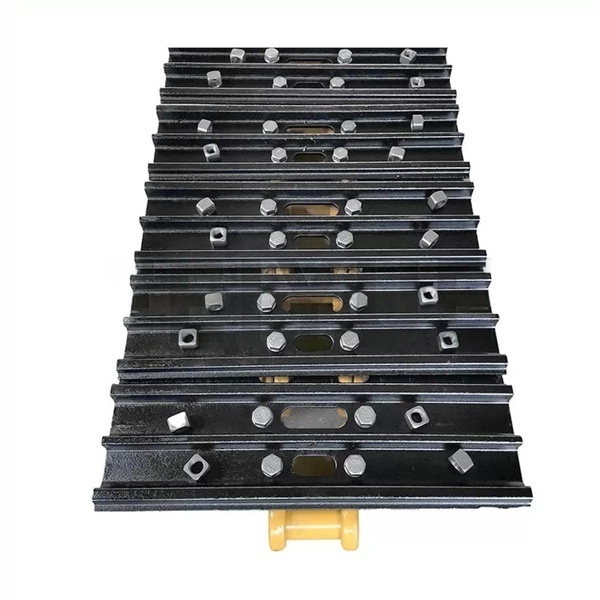

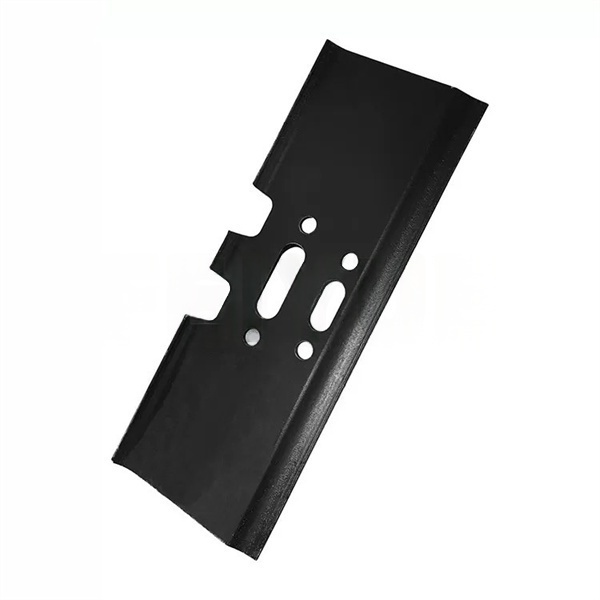

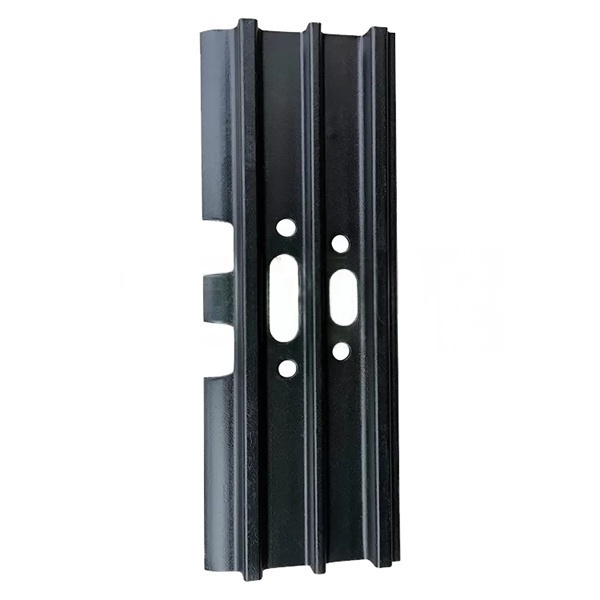

Lug Pattern Excavator Track Shoe Wear Resistance Excavator Track Shoe

Caterpillar E70B Track Shoe - Technical Product Description

Product Overview

Brand: Caterpillar®
OEM Part No.: E70B (Verify compatibility with specific machine models)
Type: Track Shoe (Single Grouser/Flat)
Compatible Models: Fits select CAT 307E, 308E and other E-Series compact/mid-size excavators (confirm machine-specific fit)
Material: High-strength alloy steel (SAE 4140), quenched & tempered
Surface Hardness: HB 350-450 (induction-hardened contact zones)
Manufacturing Process: Precision forging + CNC machining, compliant with CAT engineering standards

Technical Data E70B Track Plate
Product name	Excavator E70B track plate, E70B track pad, E70B track chain plate, cat E70B track plate
Materials	35MnB
Manufacturing technology	Forging, casting, assembly process
D1 (millimeters)	600
D2 (millimeters)	122.4
D3 (millimeters)	158.4
Thickness (millimeters)	8.5
Hardness Depth (millimeters)	12~18
Surface treatment	Smooth
Colour	Black, yellow & customized
Packaging	Export wooden crates or pallets
Application	CAT excavator E70B, etc.

Key Features & Design

Structural Design

Lug Pattern: Multi-grouser (for superior traction) or flat design (for reduced ground disturbance)
Bolt Holes: Standard 2-bolt or 3-bolt configuration (machine-dependent)
Mud/Snow Shedding: Optimized self-cleaning gaps to prevent material buildup

Durability & Performance

Wear Resistance: Critical zones hardened to HRC 50+ for extended service life
Tensile Strength: ≥ 850 MPa - withstands high-impact loads in rocky/abrasive conditions
Fatigue Tested: Validated through CAT's 10,000+ hour simulated field testing

Compatibility

Matches: CAT E70B Undercarriage System (rollers, idlers, sprockets)
Pitch: 172 mm (verify for exact machine, e.g., 307E standard)
Width: 450 mm (typical for 30-40T class excavators)

Technical Specifications

Parameter	Value
Unit Weight	22.5 kg ±0.5 kg
Bolt Spec	CAT M24×2.0 (Grade 10.9)
Operating Temp.	-40°C to +120°C (extreme conditions require special lubrication)
Load Capacity	≥ 15 MPa (static)
Corrosion Protection	Phosphate coating + anti-rust oil

Recommended Applications & Limitations

Ideal for:

Earthmoving, construction, utility work
Moderate-wear environments (gravel, clay, asphalt)

Not recommended for:

Prolonged exposure to acidic/saline corrosion (requires stainless steel variants)
High-impact mining (use XT-series reinforced shoes)

Installation & Maintenance

Installation Guidelines

Torque bolts to CAT-specified 450-500 N*m + apply thread locker
Inspect track pins & bushings for wear before assembly

Maintenance Protocol

Daily: Clear debris lodged between shoes
Every 500 hrs: Re-torque bolts, lubricate pins
Replacement Threshold: Replace if lug height wears beyond 30% (or <15 mm remaining)
