Name: Interchangeability Excavator Track Roller Track Compatibility Crawler Machinery Track Roller
Brand: Quanzhou Jintai Machinery Co., Ltd.,
SKU: EX100
Price: 88.00 USD
Availability: InStock

Detail Information

Model No:	EX100	Outer Diameter:	240±2 Mm (varies By Manufacturer)
Width:	105±1 Mm	Shaft Diameter:	50±0.02 Mm(quenched, Surface Hardness HRC55-60)
Mounting Holes:	180±0.5 Mm Center-to-center, M16×1.5 Threaded Bolts	Weight:	28-32 Kg (varies By Material/seals)
Static Load:	≥85 KN
Highlight:	Crawler Machinery Track Roller , Interchangeability Excavator Track Roller , Track Compatibility Track Roller

Product Description

Interchangeability Excavator Track Roller Track Compatibility Crawler Machinery Track Roller

Product Specifications

Attribute	Value
Model No	EX100
Outer Diameter	240±2 mm (varies by manufacturer)
Width	105±1 mm
Shaft Diameter	50±0.02 mm (quenched, surface hardness HRC55-60)
Mounting Holes	180±0.5 mm center-to-center, M16×1.5 threaded bolts
Weight	28-32 kg (varies by material/seals)
Static Load	≥85 kN

Wear Resistance Excavator Track Roller Seal Integrity Wetland Operations Track Roller

Product Overview

Model: EX100 Track Roller

Type: Undercarriage Support Roller for Crawler Machinery

Compatible Equipment: 20-30t class crawler excavators, bulldozers (e.g., Komatsu PC200, Caterpillar D6).

Primary Functions

Distributes machine weight to reduce ground pressure
Guides track chain movement, minimizing friction and wear
Enhances travel stability and prevents track derailment

Technical Specifications

Parameter	Specification
Outer Diameter	240±2 mm (varies by manufacturer)
Width	105±1 mm
Shaft Diameter	50±0.02 mm (quenched, surface hardness HRC55-60)
Mounting Holes	180±0.5 mm center-to-center, M16×1.5 threaded bolts
Dynamic Load	≥35 kN (tested per ISO 6014)
Static Load	≥85 kN
Weight	28-32 kg (varies by material/seals)

Specifications are based on industry standards. For OEM customization (e.g., material hardness adjustments), provide detailed operational requirements. Always refer to the manufacturer's technical drawing (Part No. EX100-XXXX) for exact tolerances.

Performance & Durability

Service Life:

Normal conditions (earthwork): ≥6,000 hours
Harsh conditions (mining/rock): ≥4,000 hours (shorter lubrication intervals required)

Wear Resistance: Rim wear rate ≤0.1mm/100 hours (SAE J1995 standard)

Seal Integrity: No leakage after 500 hours in muddy/water-submerged environments

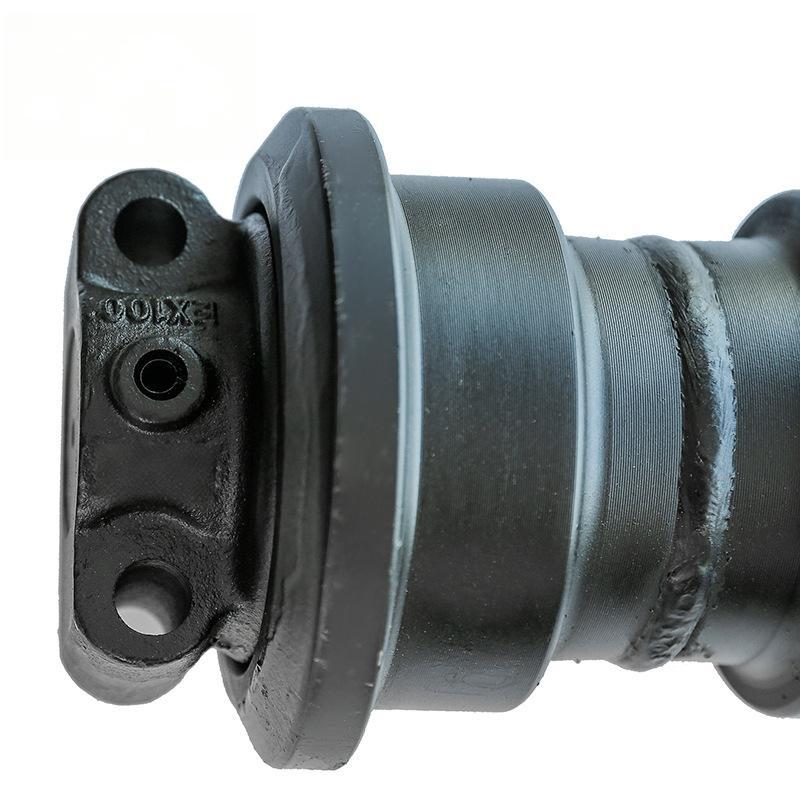

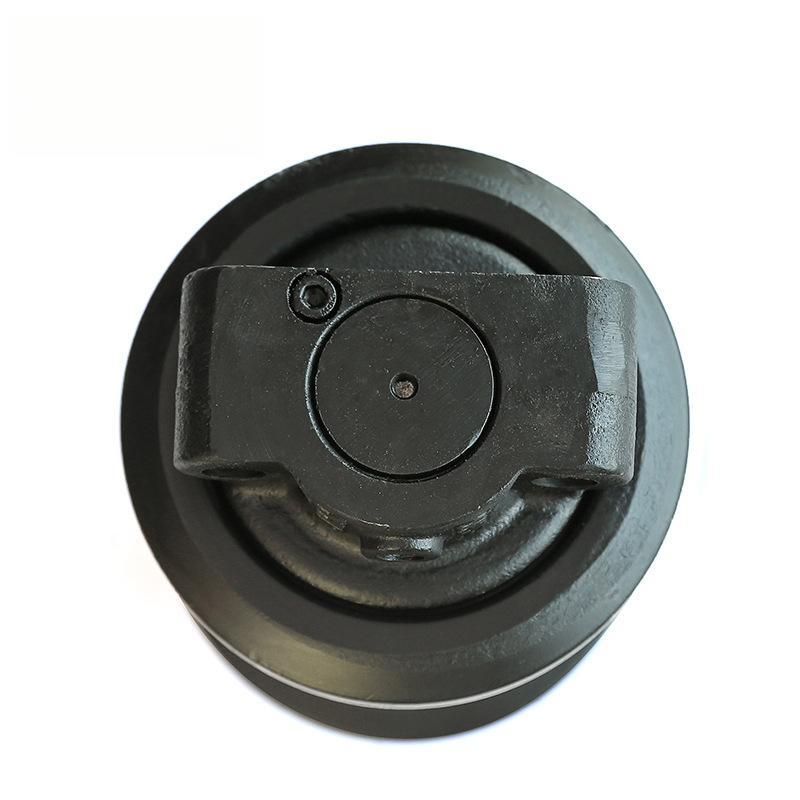

Product Images

Tag:

Place of Origin:	China
Brand Name:	CCJT
Certification:	CE
Model Number:	EX100

Minimum Order Quantity:	100
Packaging Details:	Neutral Packing
Delivery Time:	30
Payment Terms:	TT
Supply Ability:	10000+pc+7
